Slow day at the office
Posted: 13 Jan 2013 at 22:42 GMT
|
reply
|

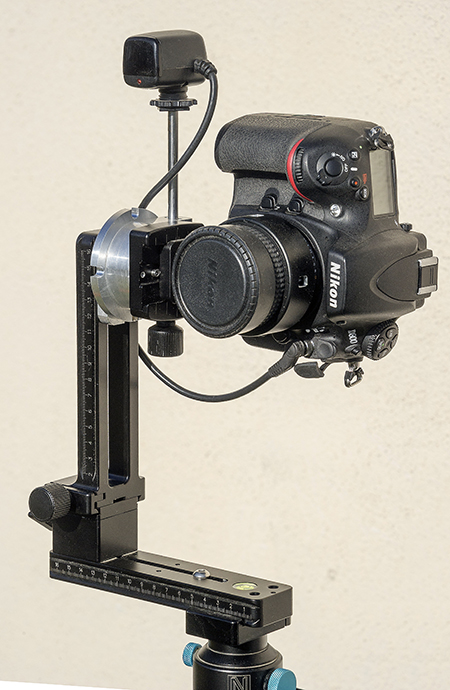

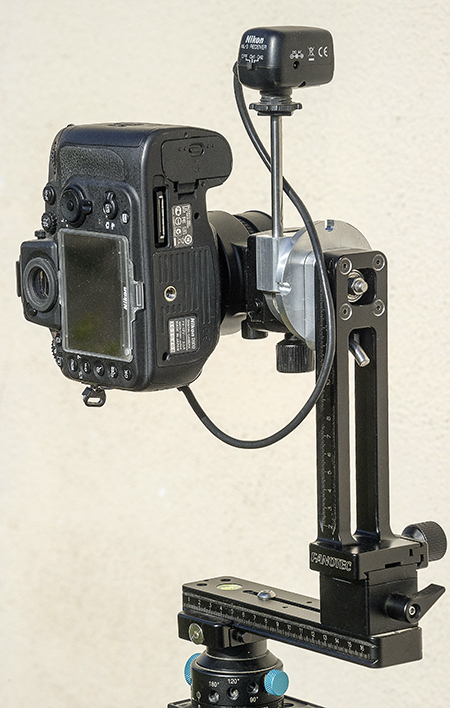

Had a bunch of free time this week. Went out into to garage and came up with this:

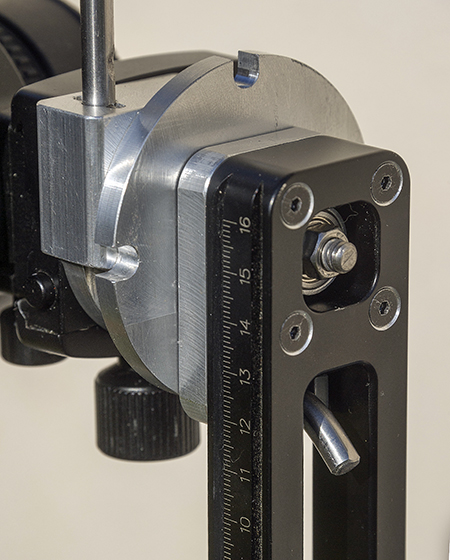

I do not need 7.5 degrees or 1 degree of adjustment. 90 degrees does me just fine. I do not like twisting a knob to open and close the upper rotator. Flip the lever, rotate the camera, flip the lever back. Done. This is not an original idea, just a different application.
Disclaimer: No M1 pano heads were modified during this exercise. This rotator is completely bolt on.
|
|
alert moderator
|
|
hindenhaag
Posts: 841
Location: Netherlands
Registered: 7 Mar 2010
|
Re: Slow day at the office
Posted: 14 Jan 2013 at 18:30 GMT
updated: 14 Jan 2013 at 18:33 GMT
|
reply
|
Hi Dennis,
Once again a nice design from you to let the equipment serve your personal needs.
What a pity that your garage is not around my corner
Regards,
Heinz
BTW: How does your LR rail stop work? A small plate inside the bottom of LR fixed by visible screw on Top stopping against the clamp's side?
|
|
alert moderator
|
|
DennisS
Posts: 1621
Location: Los Anglels, United States
Registered: 1 Sep 2007
|
Re: Slow day at the office
Posted: 14 Jan 2013 at 19:40 GMT
|
reply
|
Heinz,
Follow this link to see all the mods I have made in addition to a new upper rotator.
www.dlsphoto.net/M1PanoHeadMods/
The lower rail stop works great.
I am actually just around the corner, if you consider a 12 hour flight "around the corner".
Dennis
|
|
